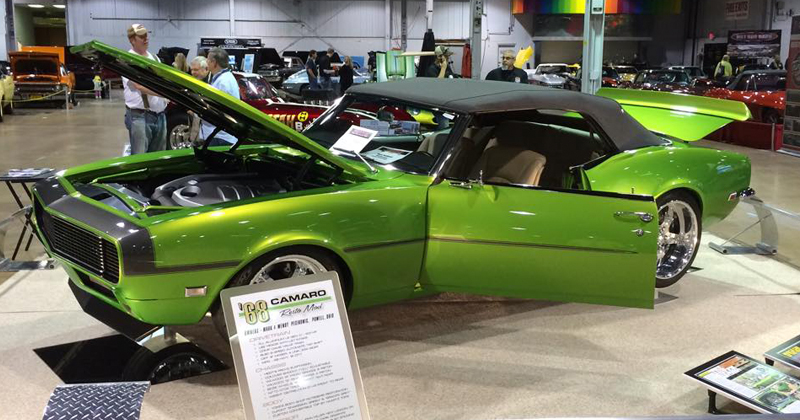

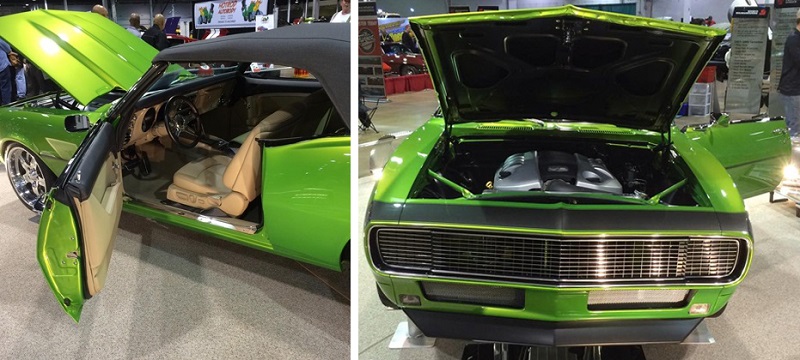

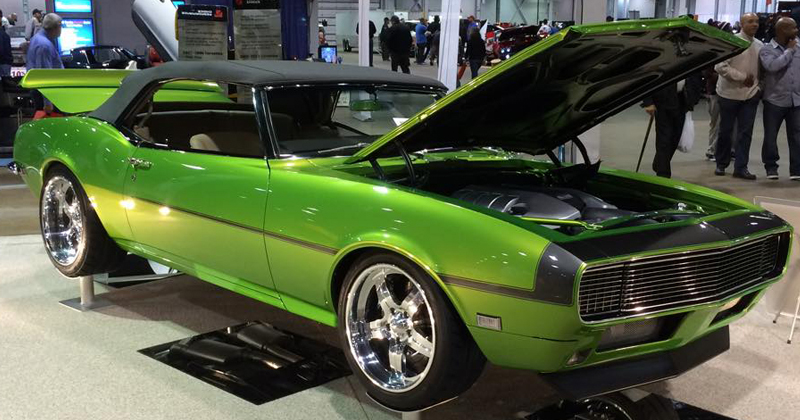

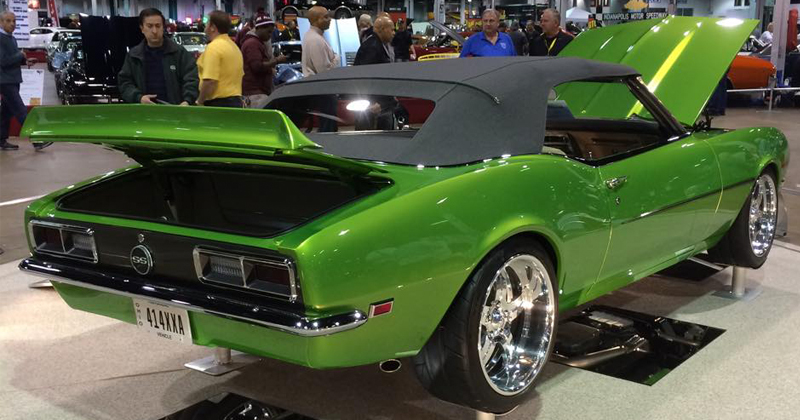

Heidts Featured Build: Green Machine
’68 Chevy Camaro
Don’t panic, Heidts featured build, called the Green Machine, is not electric or wind powered; it is Mark Pecikonis’ fossil-fuel-burning 1968 Chevy Camaro.
Joe Montano, Mark Pecikonis and Mark’s sons, Matt and Nick, logged many hours building the Green Machine, and the Camaro was even featured on the cover of Super Chevy magazine.
It features a Heidts Pro-G bolt-on front subframe, with 2-inch drop spindles, tubular A-arms, adjustable coil overs, and a 1-inch sway bar along with a Heidts bolt-in 4-link out back. And of course, an awesome paint job.
1968 Chevy Camaro RS/SS Green Machine Specifications
ENGINE
Type: 366ci LS2
Rotating assembly: stock GM
Cylinder heads: L92
Camshaft: Livernois .620-/.620-inch lift, 224/236 degrees duration at .050
Valvetrain: COMP Cams pushrods, Livernois valvesprings
Induction: GM LS2, 90mm throttle body
Exhaust: custom 1.875-inch headers, custom exhaust
Ignition: GM
DRIVETRAIN
Transmission: 6L80E four-speed automatic
Rear end: Moser 9-inch with 3.54 gears
CHASSIS
Front suspension: Heidts subframe with tubular control arms, tall spindles and coilovers
Rear suspension: Heidts four-link and coilovers
Steering: Heidts rack-and-pinion
Brakes: 14-inch Wilwood six-piston discs front, 12-inch Wilwood four-piston discs rear
Take a look at some more builds that use Heidts parts in this video from 2014 Heidts Performance Car Challenge 2014:
Heidts Performance Car Challenge 2014 v2
