Redhorse Performance Hose and Fittings from Summit Racing

Seeing Red

Redhorse Performance builds a lot to quality into its AN hose, fittings, and other performance plumbing components. The company does its design work in-house and CNC-machines; every part to very tight tolerances. Redhorse is so sure its stuff is so good, it backs all fittings and adapters with a limited lifetime warranty.

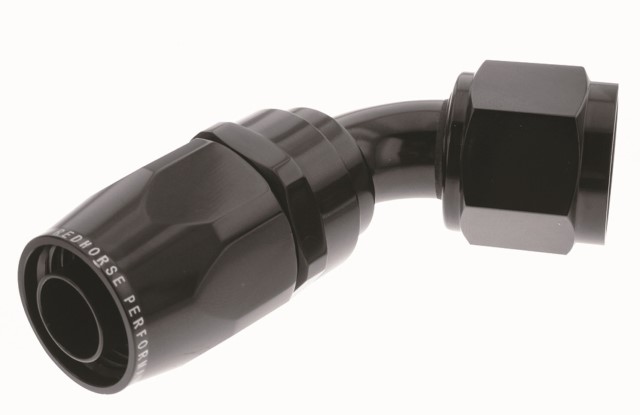

Swivel-Seal AN Hose Ends

Redhorse Performance swivel-seal AN hose ends have a double-swivel design for easy clocking and double Viton O-ring seals for leak-free performance with a wide range of fuel and fluids. The 6061 T6 aluminum hose ends are cut on CNC machine turning centers for superior thread strength and smooth assembly. Hand-polishing and color-consistent anodizing add the final touch of quality. The hose ends are available with black, clear, or red/blue anodized finishes.

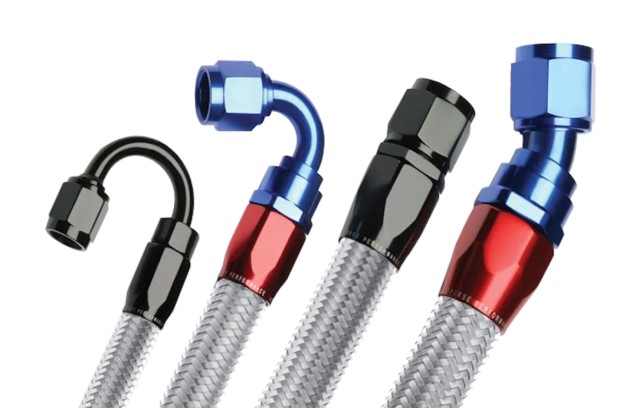

AN Hose

Summit Racing carries several types of Redhorse Performance AN hose including these:

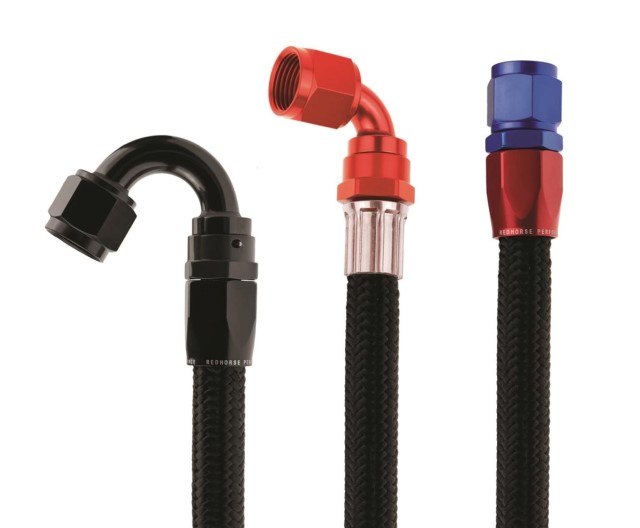

235 Series Premium Nylon Braided Hose and 205 Series Stainless Braided Hose have a dual-layer inner tube of Epichlorohydrin (ECO) and Fluoroelastomer that is compatible with E85, methanol, and gasoline. They also have a full stainless steel underbraid layer. The 235 Series Hose has a black braided nylon cover, and the 205 Series hose has a stainless steel braided cover.

302 Series and 303 Series PTFE Hose have a smooth bore, dual-layer PTFE inner tube with a conductive core that eliminates the risk of electrostatic discharge. The 302 Series Hose has a black braided nylon cover and the 303 Series hose has a stainless steel braided cover.

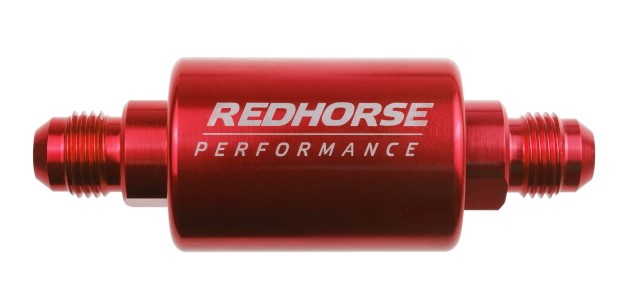

Inline Fuel Filters

Redhorse Performance Inline Fuel Filters have CNC-machined bodies with the male AN inlet and outlet flares built into the filter body to reduce fuel pressure drop. The 4151 Series Fuel Filters have an element that filters down to 100 microns and are available for -6AN and -8AN fuel line. The 4651 Series Fuel Filters are available with 10, 12, 40, or 100 micron elements for -6AN, -8AN, -10AN, and -12AN fuel line.

Summit Racing also carries other Redhorse Performance products including push-lock fittings and hose; carburetor fuel line kits; hose clamps and separators; and a huge selection of adapters, couplers, and unions to finish your vehicle’s plumbing systems.
